30A 12V 4 Pin Automotive Fuse Relay Car Relays With Metal Bracket

Name: 30A 12V 4 Pin Automotive Fuse Relay Car Relays With Metal Bracket
Brand: TIAN RUI
Price: 1 USD

Buy cheap 30A 12V 4 Pin Automotive Fuse Relay Car Relays With Metal Bracket product

Brand Name : TIAN RUI

Model Number : A4F

Certification : ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : Car Starter Relay

Rated Current : 150A

Rated Voltage : 12V 24V DC

Contact Form : Normal Open

Operating temperature : -40 to +75℃

Power : 2.4W

Insulation : 20MΩ min (at 500VDC)

Electrical Endurance : 50000

Mechanical Endurance : 10000000 （ 300 Cycles / min ）

Application : Automotive

Contact Now

Normal Open Automotive Preheat Starter Relay for Car Start and Preheating 150A 12VDC 24VDC

Coil Ratings of Normal Open Automotive Preheat Starter Relay

Coil Volt. (VDC)	Operation Volt. ( VDC)	Release Volt. ( VDC)	Coil Resistance (1±10%)Ω	Parallel Resistance (1±10%)Ω	Equivalent Resistance (1±10%)Ω	Power (W)	Max. Coil Volt.(VDC)
12V	8	1	60	--	--	2.4	15
24V	15	1	240	--	--	2.4	30

Features of Normal Open Automotive Preheat Starter Relay

150A Contact Switching Capacity
75℃ Working Temperature
Normal Open Form
ROHS, ELV Order Available

Specifications of Normal Open Automotive Preheat Starter Relay

Insulation

20MΩ min (at 500VDC)

Dielectric Strength

Between Contacts

1000VAC (1min)

Leak Current
＜1mA

Between Coil and Contacts

1000VAC (1min)

Max. Continuous Current

NO:150A (Resistive )

Max. Switching Voltage

110VDC (Resistive )

Min. Load

1A 6VDC

Electrical Endurance

5*104

Mechanical Endurance

1*107 ( 300 Cycles / min )

Contact Voltage Drop

Typ. :160mV

Max. :200mV (10A )

Operate Time

＜50ms

Release Time

＜50ms

Ambient Temperature

'- 40℃ ~ 75℃

Vibrate

10Hz~500Hz,5.0G

Shock

Steady Operation

10G

Limit Operation

100G

Contact Rating of Normal Open Automotive Preheat Starter Relay

Contact Form

Contact Material

AgSnO2In2O3

Contact Rating(resistive)

150A/14VDC; 100A/28VDC; 50A/72VDC; 30A/110VDC

Break-Make Ratio

ON:1S OFF:4S

Test Temperature

23℃

Contact Details:

Andy Wu

Email: andy@tianrui-fuse.com.cn

MP/Whatsapp: +86 13532772961

Wechat: HFeng0805

Skype: andywutechrich

QQ: 969828363

Product Tags:

30A Automotive Fuse Relay

12V Automotive Fuse Relay

ROHS Car Starter Relay

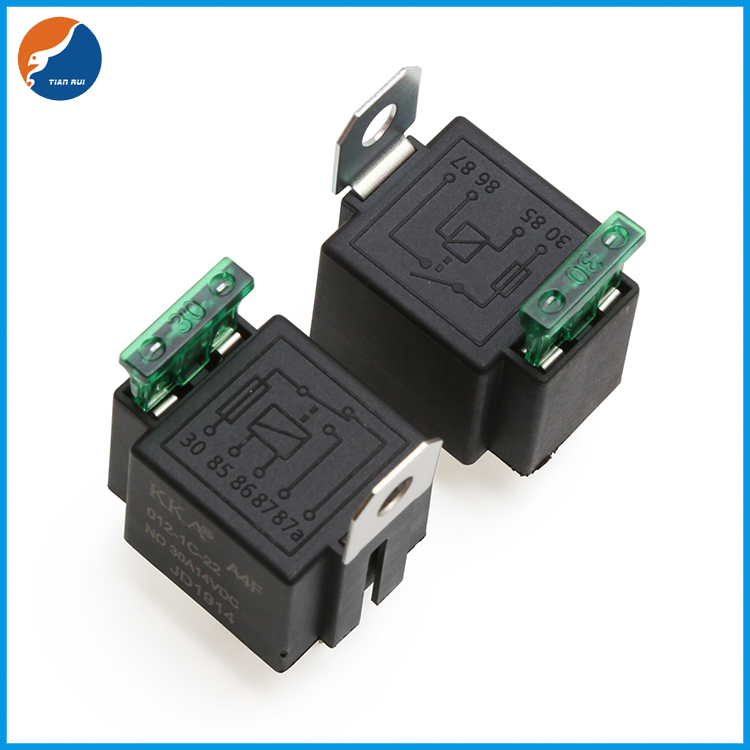

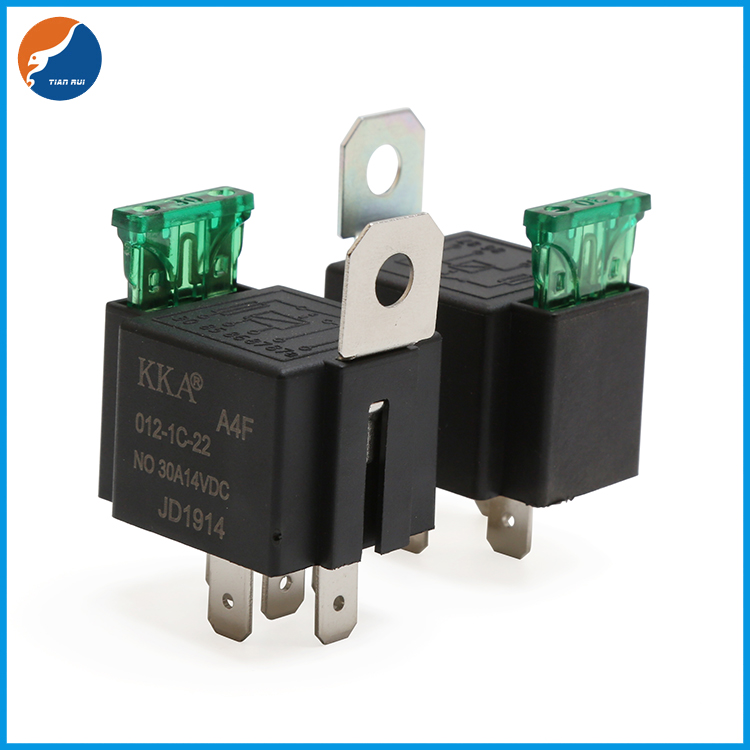

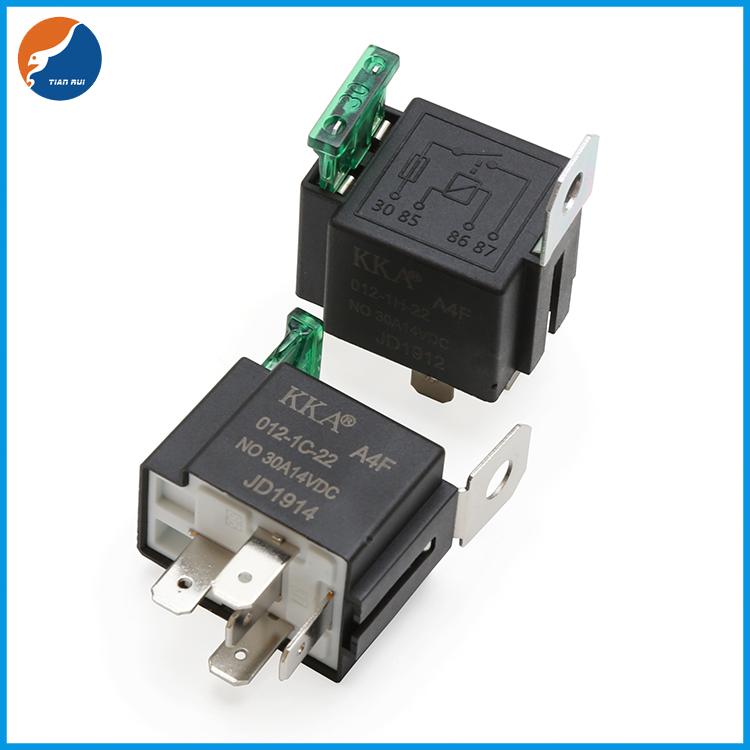

30A 12V 4 Pin Automotive Fuse Relay Car Relays With Metal Bracket Images
