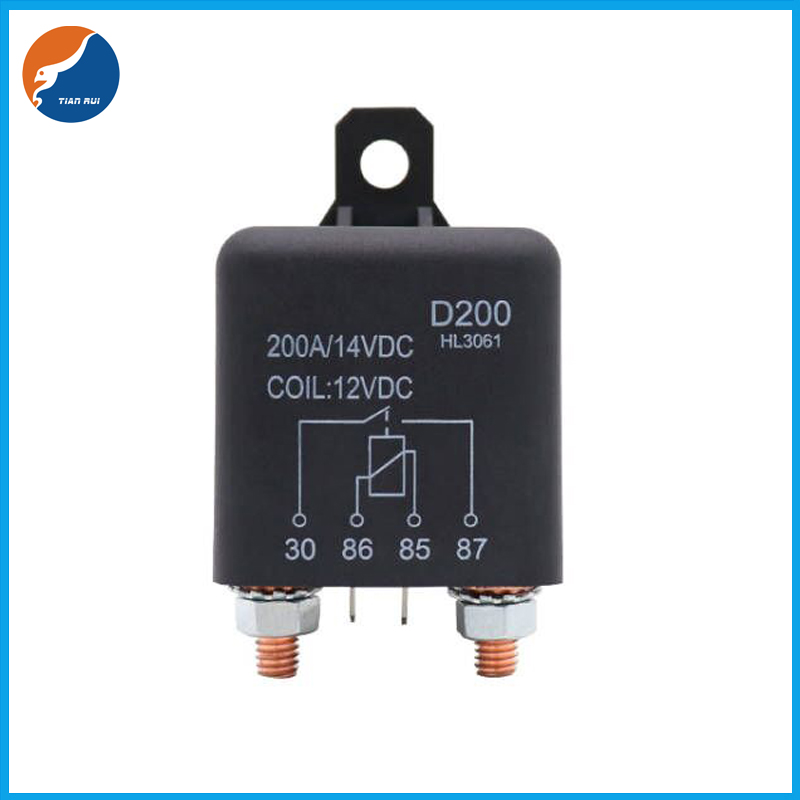

200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Brand Name : TIAN RUI

Model Number : D200

Certification : ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : Car Relay

Rated Current : 200A

Rated Voltage : 12V 24V

Contact Form : 1H：NO

Operating Temperature : -40 to +85℃

Power : 2.4W 4.8W

Insulation Resistance : 100MΩ min (at 500VDC)

Dielectric Strength : 50Hz 500V

Lifespan : 100000 Times

Application : Automotive

Contact Now

200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays





Coil Ratings of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



Specification
 		 Coil Volt. (VDC)
 		 Coil Resistance (Q±10%) Pickup Vol. VDC (max.) Release Vol. VDC (min.)  Coil Power  Operate Time
 		 Release Time

Rated
 		 Max.

12V 2.4W 12 15.6 60 7.8 1.2 2.4W ≤10ms ≤5ms
24V 2.4W 24 31.2 240 15.6 2.4 2.4W
12V 4.8W 12 15.6 30 7.8 1.2 4.8W ≤10ms ≤5ms
24V 4.8W 24 31.2 120 15.6 2.4 4.8W





Features of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



▪ 200A large current
▪ Designed for large equipment and machines





Operation Condition of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



Insulation  100MΩ min (at 500VDC) Item 7 of IEC 60255-5
Dielectric
Strength		 Between contacts 50Hz 500V Item 6 of IEC 60255-5
Between coil and contacts 50Hz 500V Item 6 of IEC 60255-5
Shock Resistance  147m/s² IEC 68-2-27 Test Ea
Vibration Resistance 10-40Hz double amplitude 1.5mm IEC 68-2-6 Test Fc
Terminals Strength  20N IEC 68-2-21 Test Ua1
Solderability  235℃±2℃ 3±0.5s IEC 68-2-20 Test Ta method 1
Ambient Temperature -40℃--85℃
Relative Humidity  85% (at 40℃) IEC 68-2-3 Test Ca
Mass  111g





Contact Rating of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



Contact form  1H(SPSTNO)
Contact material  AgSnO2
Contact rating(resistive) 200A/14VDC
Max. Switching Voltage  40VDC
Max. Switching Current  200A
Max. Switching Power  1680
Contact Resistance  ≤30mΩ Item 4.12 of IEC 61810-7
Electrical Endurance  1*105 Item 4.30 of TEC 61810-7
Mechanical Endurance  1*107 Item 4.31 of TEC 61810-7





Drawing of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

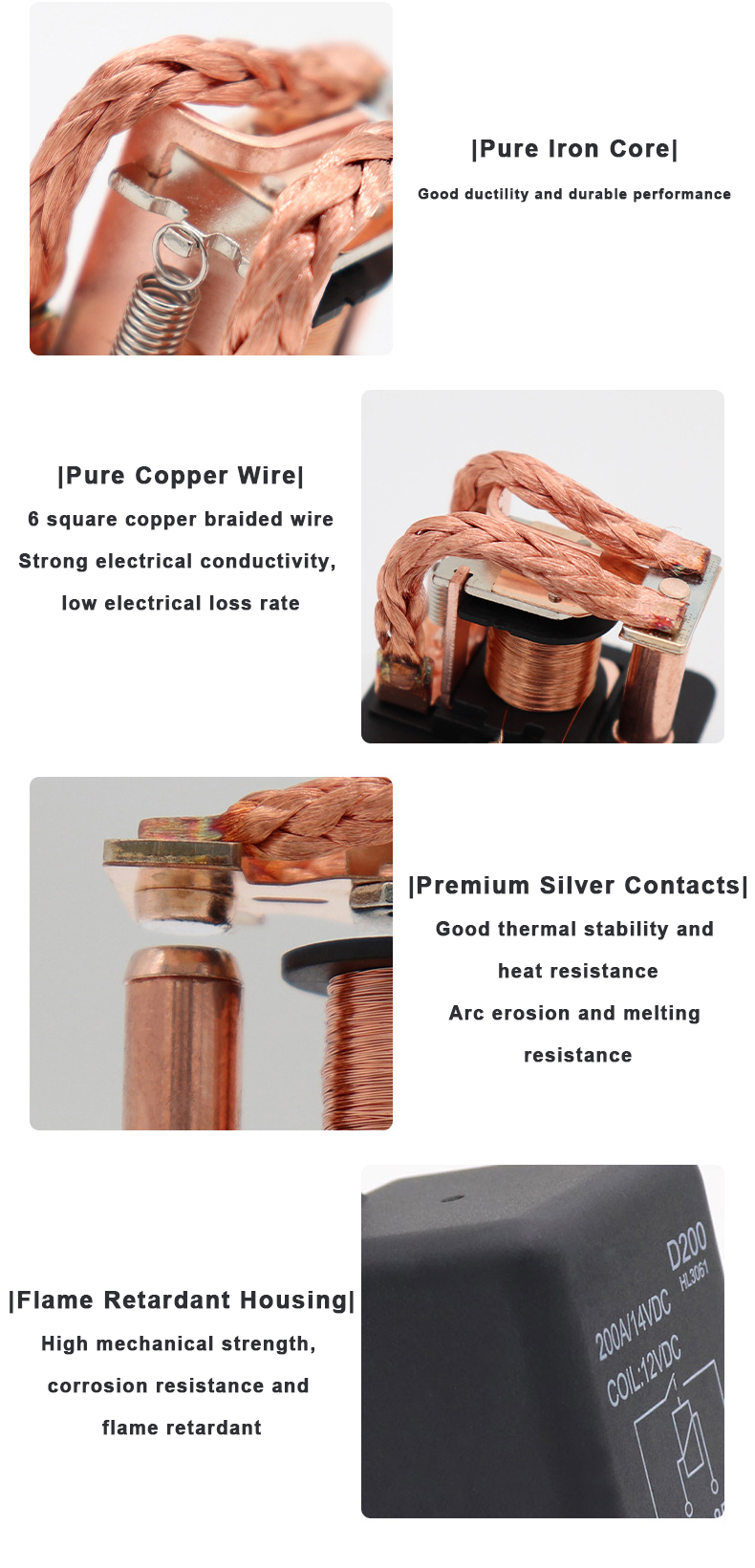

Details of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays



200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays
