2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

Dongguan Tianrui Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

Brand Name : TIAN RUI

Model Number : 2R-5

Certification : ROHS REACH

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : D/P,T/T,Paypal,Western Union

Supply Ability : 1000000+PCS+Month

Delivery Time : 5-7 days

Packaging Details : 1000pcs/PE bag

Type : 2R-5 Series Gas Discharge Tubes

8/20μs Impulse Current : 2KA 3KA 5KA

DC Spark-over Voltage : 1000V-5000V

Tolerance : 20%

Electrode Number : 2R, 2 Electrodes

Surface Treatment : DIP -Nickel Plated, SMD -Matte-tin plated

Size : 5.5x6mm

Operating Temperature : -40~+125°C

Lead Type : Lead or SMD

Weight : DIP ~0.7g, SMD ~0.43g

Contact Now

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT



Description of 2R-5 Gas Discharge Tubes


2R-5 Gas Discharge Tubes (GDT) series provides high levels of protection against fast rising transients caused by lightning disturbances. Offered in a miniature surface mount package, it has a surge rating of 5KA/3KA/2kA 8/20μs.



2R-5 GDTs are high voltage (1000-5000V) components designed for surge protection and high isolation applications. It is also suitable for applications for which bias voltage or signal levels of several hundred volts are normally present. 2R-5 GDTs can be used in conjunction with MOVs (Metal Oxide Varistors) to provide superior protection performance for AC applications.



2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT



Features of 2R-5 1000-5000V Gas Discharge Tubes



• Voltage Ranges 1000V to 5000V
• Excellent response to fast rising transients
• 8/20μs Impulse current capability: 5KA/3KA/2kA
• Non-Radioactive
• Ultra Low capacitance (<1pF)
• Lead-free compliant
• RoHS and REACH compliant
• UL 1449 Recognized: E479668
• Size: Ф5.5mm*6mm
• Storage and operational temperature: -40~+125°C



Applications of 2KA 3KA 5KA Ceramic GDT



Automotive:
• On-board chargers
• Vehicle charging stations



Others:
• LED lighting
• Power supply
• Photovoltaic
• Air conditioning



2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT



Electrical Characteristics of 2KA 3KA 5KA Gas Discharge Tubes



Part Number DC
Spark-over Voltage 1) 2) @100V/S
Impulse Spark-over Voltage Insulation Resistance
3)
Capacitance @1MHz Glow Voltage @10mA Arc Voltage @1A AC
withstand voltage @5mA 1Min
Life Ratings
Impulse Discharge Current @8/20μS AC
Discharge Current @50Hz 1S
100V/μS 1KV/μS
Max Max Min Max Type Type Min Nominal
±5 times
Max 1 time Nominal 5 times
DIP SMD V V V pF V V V KA KA A

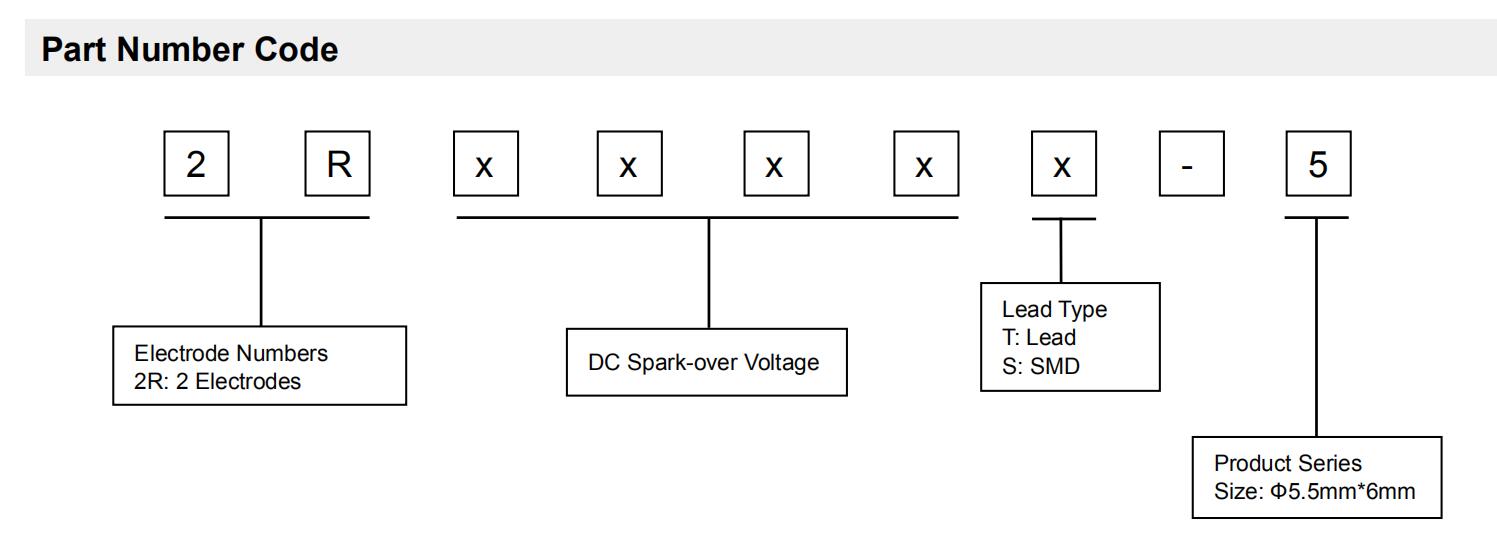

2R1000T-5 2R1000S-5 1000±20% 1600 1800 1 1 150 15 500 5 10 5
2R1200T-5 2R1200S-5 1200±20% 1800 2000 1 1 150 15 600 5 10 5
2R1400T-5 2R1400S-5 1400±20% 2200 2400 1 1 170 18 700 5 10 5
2R1500T-54) 2R1500S-54) 1500±20% 2300 2500 1 1 170 18 750 5 10 5
2R1600T-5 2R1600S-5 1600±20% 2400 2600 1 1 170 18 800 5 10 5
2R2000T-5 2R2000S-5 2000±20% 2800 3000 1 1 260 30 1000 3 5 3
2R2500T-5 2R2500S-5 2500±20% 3300 3500 1 1 260 30 1300 3 5 3
2R2700T-54) 2R2700S-54) 2700±20% 3400 3600 1 1 260 30 1400 3 5 3
2R3000T-5 2R3000S-5 3000±20% 3700 3900 1 1 260 30 1600 3 5 3
2R3500T-5 2R3500S-5 3500±20% 4300 4500 1 1 260 30 1800 3 5 3
2R3600T-5 2R3600S-5 3600±20% 4400 4600 1 1 260 30 1900 3 5 3
2R4000T-54) 2R4000S-54) 4000±20% 5000 5500 1 1 260 35 2100 2 5 2
2R4500T-54) 2R4500S-54) 4500±20% 5500 6000 1 1 260 35 2300 2 5 2
2R5000T-54) 2R5000S-54) 5000±20% 6000 6500 1 1 260 35 2600 2 5 2
Glow to Arc transition Current………………………………………...... ~0.3A
Weight…………………………………………………………………...... DIP ~0.7g
SMD ~0.43g
Operation and storage temperature……………………………………. -40~+125°C
Climatic category (IEC 60068-1) 40/125/21
Surface treatment……………………………………………………...... DIP -Nickel Plated
SMD -Matte-tin plated
1) At delivery AQL 0.65 level II, DIN ISO 2859.
2) In ionized mode.
3) Insulation Resistance Measuring Voltage at DC 100V.
4) No UL 1449 Recognized.
Terms in accordance with ITU-T Rec. K.12, IEC 61643-311, GB/T 9043.



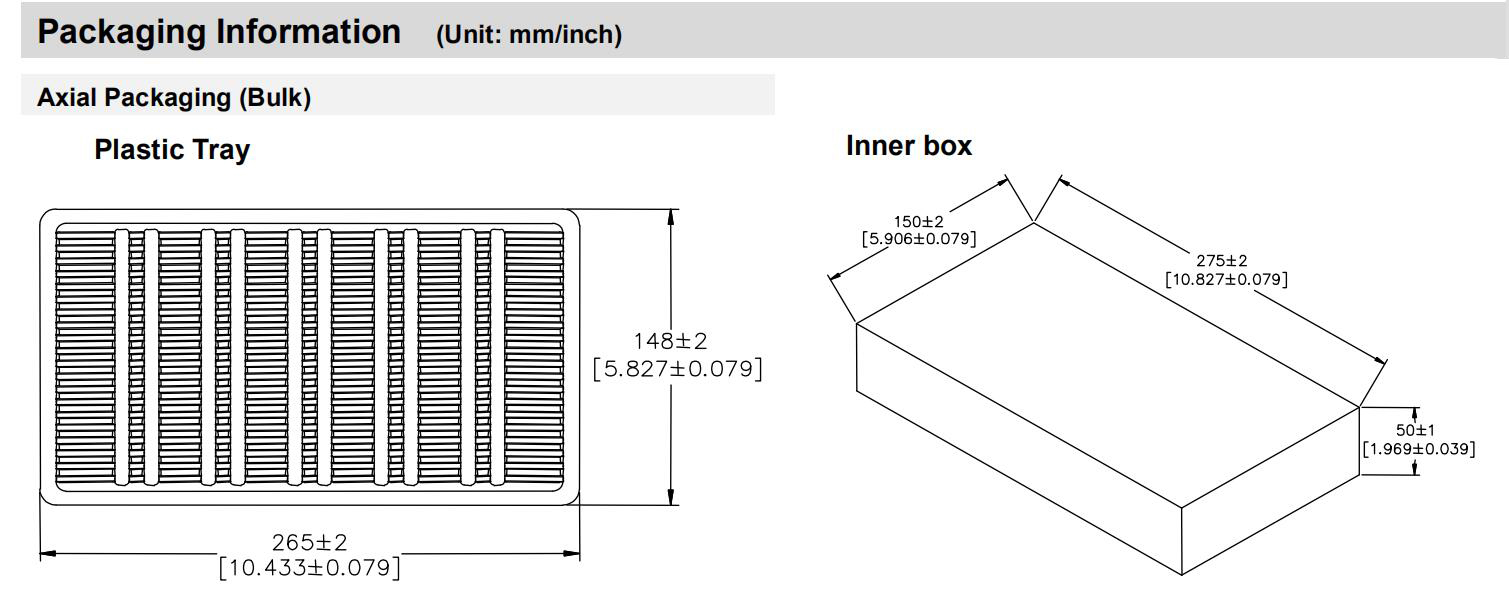

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

Soldering Parameters - Wave soldering (Thru-Hole Devices)
2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT
Wave Soldering Condition Pb-Free assembly
Preheat Temperature Min 100°C
Temperature Max 150°C
Time (Min to Max) 60-180 Seconds
Solder Pot Temperature 280°C Max
Solder Dwell Time 2-5 Seconds



Soldering Parameters - Reflow Soldering (Surface Mount Devices)


2 Electrodes 2R-5 Gas Discharge Tubes 1000-5000V 1pF Surge Protector 2KA 3KA 5KA Ceramic GDT

Reflow Condition Pb - Free assembly
Pre Heat -Temperature Min (Ts(min)) 150°C
-Temperature Max (Ts(max)) 200°C
- Time (min to max) (ts) 60 -180 Seconds
Average ramp up rate ( Liquids Temp TL) to peak 3°C/second max
TS(max) to TL - Ramp-up Rate 5°C/second max
Reflow - Temperature (TL) (Liquids) 217°C
- Time (min to max) (ts) 60 -150 Seconds
Peak Temperature (TP) 260 +0/-5°C
Time within 5°C of actual peak Temperature (tp) 10 - 30 Seconds
Ramp-down Rate 6°C/second max
Time 25°C to peak Temperature (TP) 8 minutes Max
Do not exceed 260°C
