SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor

Product Categories
Dongguan Tianrui Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor

Brand Name : TIAN RUI

Model Number : CWFB1104FC-142M, CWFB1105FD-192M

Certification : ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : 100K OHM BBQ Temperature Sensor Probe

R25 : 100KΩ ±1%

B Vale : 4070

THERMAL TIME CONSTANT (SEC.) : Max. 8

Operating temperature : -40℃ ～ 350℃

Tube : PTFE 12T

Housing : Stainless Steel Probe(S304)

Lead Wire : Braided cable AWG26 380℃

Connector : Plug Jack, 2.5mm

Thermal Dissipation Constant (Mw/℃) : ≧2.5

Contact Now

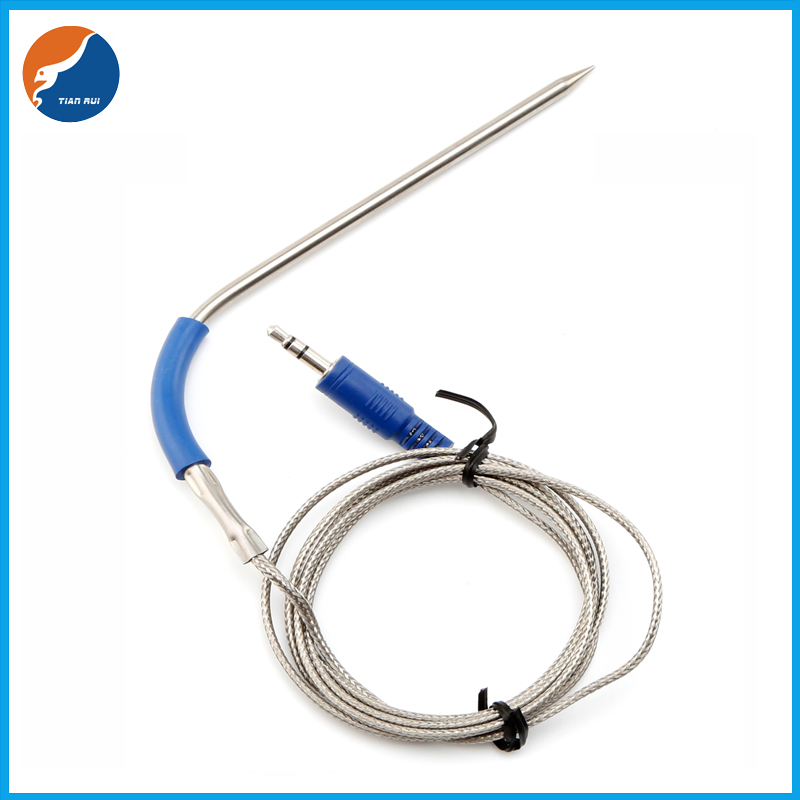

High Temperature RTD 100K OHM BBQ Grill Food Cooking Temperature Sensor Probe



Description of BBQ Temperature Sensor



Food safe is one of most important theme today and how we can ensure food cooked can be eated. Meat probe can help you to know when can eat food safety. Meat probe made of food grade stainless steel 304 inside high accuracy ntc thermistor and connected with high temperature cable, as well as connector added to connect with other devices, also can be wireless by bluetooth etc high tech technology and we can measuring temperature of food easily , then you can enjoy your delicious dinner.



Application of 100K OHM Temperature Sensor



* BBQ

* Stove

* Range Oven

* Smoker

* Grill

* Bake



Features of Grill Food Cooking Temperature Sensor



♦ High Accuracy

♦ Single measuring point or multi measuring point

♦ Food grade SUS304

♦ Steady NTC Thermistor used,even Japan imported

♦ Custom made available

♦ Strong technical support

♦ Short delivery

♦ High temperature cable options

♦ All kinds of connector to be choosed



Parameters of BBQ Grill Food Cooking Temperature Sensor Probe



SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor





SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor

RESISTANCE AT 25℃ (ohms) B COMSTANT (25-85) TEMPERATURE ℃ THERMAL TIME CONSTANT (SEC.) THERMAL DISSIPATION CONSTANT (Mw/℃) H17 Series
PART No.:
R25:100KΩ ±1% 4070 -40℃ ～ 350℃ Max. 8 ≧2.5 CWFB1104FC-142M

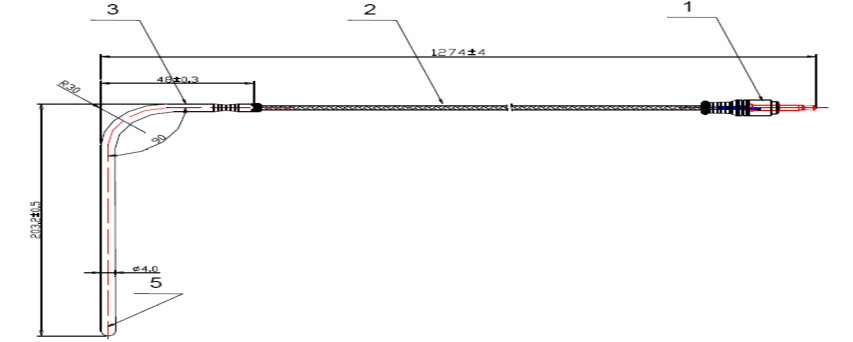

No. COMPONENT MATERIAL AND SPECIFICATIONS Q'TY REMARK
5 ELEMENT ACU CHIP 1
4 HOUSING Stainless Steel Probe(S304) Φ4 1
3 Tube PTFE 12T 1 Grey
2 LEAD WIRE Braided cable AWG26 380℃ 1340
1 CONNECTOR Mono plug jack, 2.5mm 1 Black





SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor

RESISTANCE AT 25℃ (ohms) B COMSTANT (25-85) TEMPERATURE ℃ THERMAL TIME CONSTANT (SEC.) THERMAL DISSIPATION CONSTANT      (Mw/℃) H21 Series
PART No.:
R25:1388KΩ ±5% R200:4KΩ ±1% 4557 -40℃ ～ 350℃ Max. 8 ≧2.5 CWFB1105FD-192M

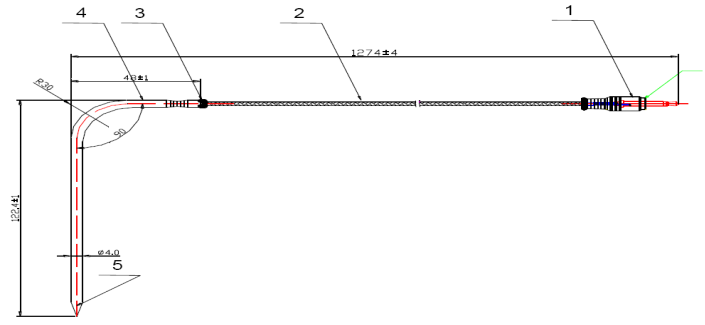

COMPONENT MATERIAL AND SPECIFICATIONS Q'TY REMARK
ELEMENT ACU CHIP 1
HOUSING Stainless Steel Probe(S304) Φ4*203.2*48 1
LEAD WIRE AWG#26 Braided wire 380℃ 1
CONNECTOR 2.5mm mono audio jack 1 BLACK



SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor



SUS304 Probe RTD 100K OHM BBQ Grill Temperature Sensor
