Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

Brand Name : Tian Rui

Model Number : 2410 SCT

Certification : UR CUR

Place of Origin : China

MOQ : 2000PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : Every 1000 PCS for 1 roll

Rated Current : 50mA-15A

Rated Voltage : 125V/250V/300V

Package Size : 2410, 6.1x2.6x2.6mm

Type : Time-lag

Stype : Surface Mount SMD Fuses

Cap : Ag Plated Brass

Body : Ceramic Body

Fuse Element : Alloy

Standards : UL248-1; UL248-14

Filled : None

Application : Electronic devices

Contact Now

2410 Disposable Time Delay Slow Blow Acting Time-Lag Ceramic SMD Fuses Surface Mount Chip Fuse






Rated Voltage
Agency
Ampere Range
Agency File Number
125V/250V/300V UR 50mA ~ 10A E468765
C-UR 50mA ~ 10A E468765



Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body



Scope of Application


This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely
used in industrial of Lighting, Power supply and Adapter applications, etc.



Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

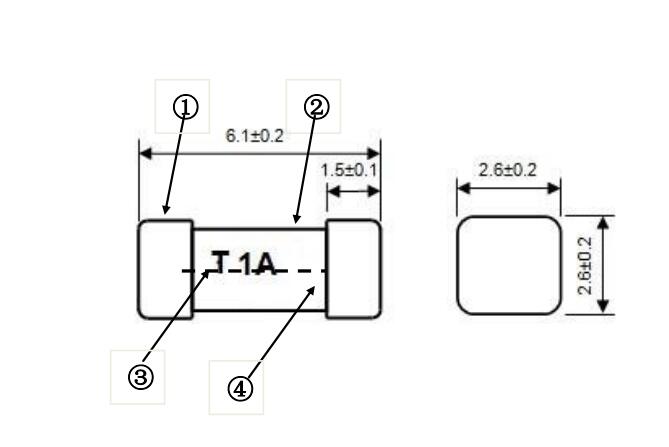

Material Details


NO.

Part Name

Material
①

Cap

Ag Plated Brass
②

Body

Ceramic
③

Fuse element

Alloy
④

Filled
None





Product Characteristic

Rated Rated voltage Maximun voltage Breaking capacity I2T UR
current drop(mv) A2s
SGT 50mA   5000   0.01
SGT 63mA   4400   0.02
SGT 100mA   3500   0.04
SGT 125mA   2500   0.06
SGT 160mA   2200   0.08
SGT 200mA   1800   0.09
SGT 250mA   1400   0.11
SGT 315mA   1300   0.14
SGT 400mA   1000   0.26
SGT 500mA 125V(SGT) 900   0.5
SGT 630mA 800 0.8
250V(SCT)
SGT 800mA 300V(SMT) 600 125V@100A ac 1.5
SGT 1.0A 125V(50mA~15A) 500 50A @250V/300Vac 2.3
SGT 1.25A 250V(50mA ~10A) 400   3.2
SGT 1.6A 300V(50mA ~10A) 300   5.9
SGT 2.0A   300   7.8
SGT 2.5A   300   10
SGT 3.15A   300   23
SGT 4.0A   300   39
SGT 5.0A   300   58
SGT 6.3A   300   95
SGT 8.0A   220   150
SGT 10.0A   220   210
SGT 15A   200   320





Opning Time



% of Ampere Rating

Opening Time(UL)

100%

>4 Hours

200%

<120 sec



Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

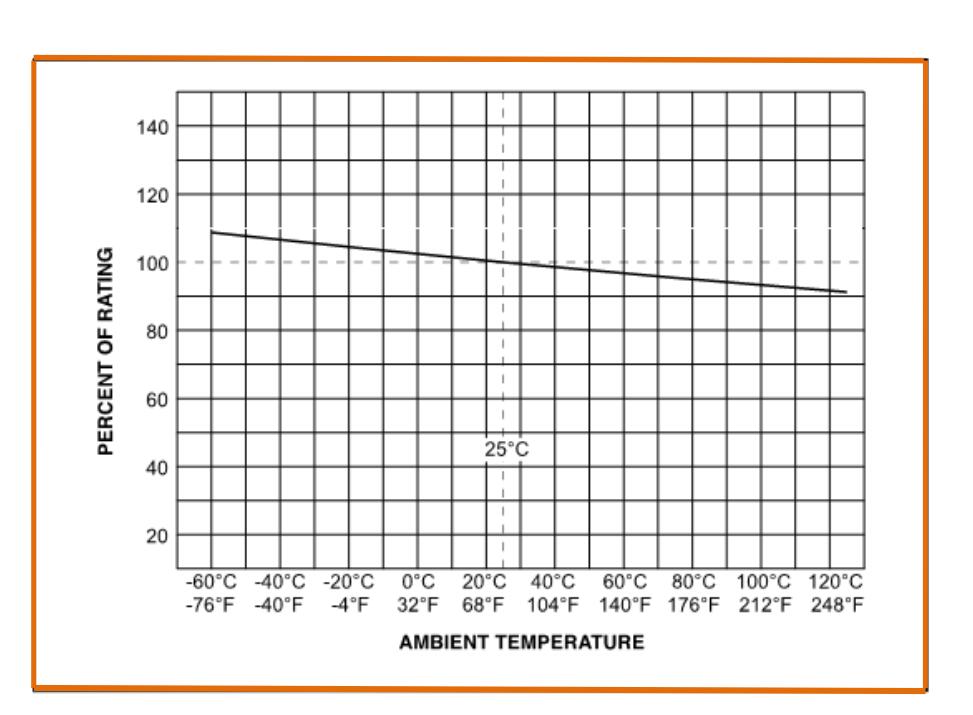

When choosing the fuse's specification, if the operating environmental temperature beyond the scope from 20~30℃, engineer should consider the environmental temperature's affection to fuses. Please refer: Temperature Rerating Curve:
Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

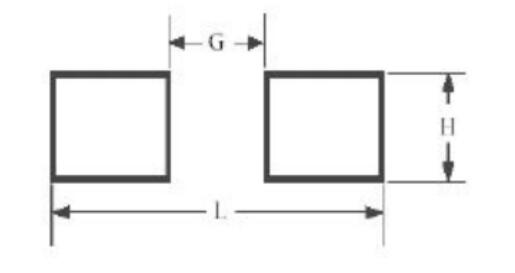

Propose installation way as following picture



Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

/
mm
inch
L
8.7
 0.343
H
 2.9 0.114
G
 3.0 0.118





Recommended Soldering Parameters

Reflow Condition Pb-Free assembly
Preheating -Temperature Min Ts(min) 150℃
-Temperature Max
Ts(man)		 200℃
-Time Max 120 secs
Soldering -Temperature
(TL)(Liquidus)		 260℃
-Time Max (TL) 60 secs
-Temperature (TP) Max 260℃
-Time Max (TP) 10 secs
