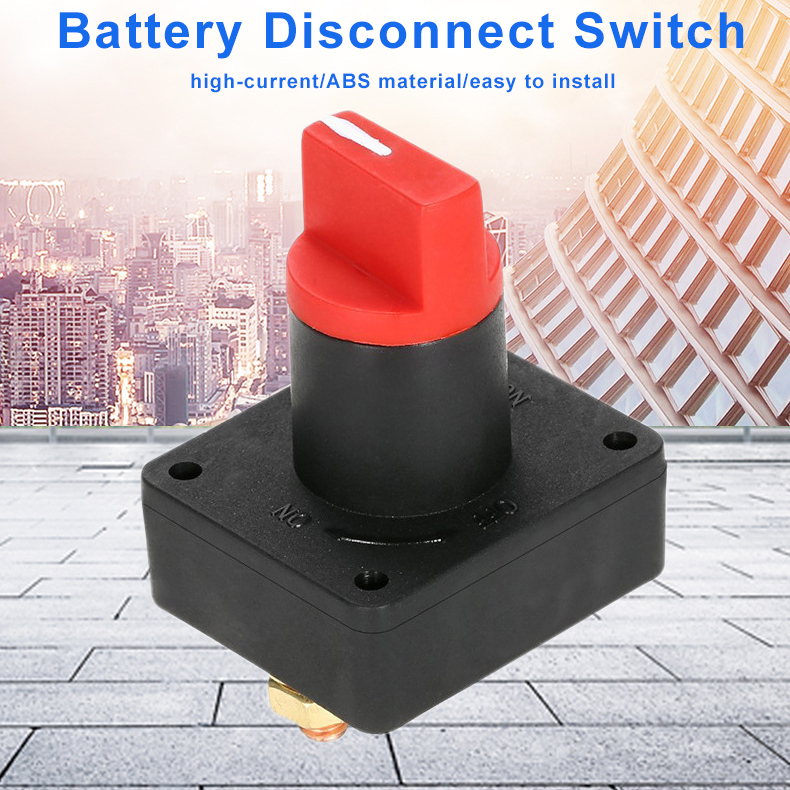

300A 60VDC Mini Universal Motorcycle Car Auto Battery Disconnect Cut Off Kill Switch
This product is suitable for passenger cars, trucks, tractors, professional racing cars, and now it has been applied to many ordinary RVs abroad. At present, this kind of modification combination switch is used in many coastal cities in China, and the installation is simple.

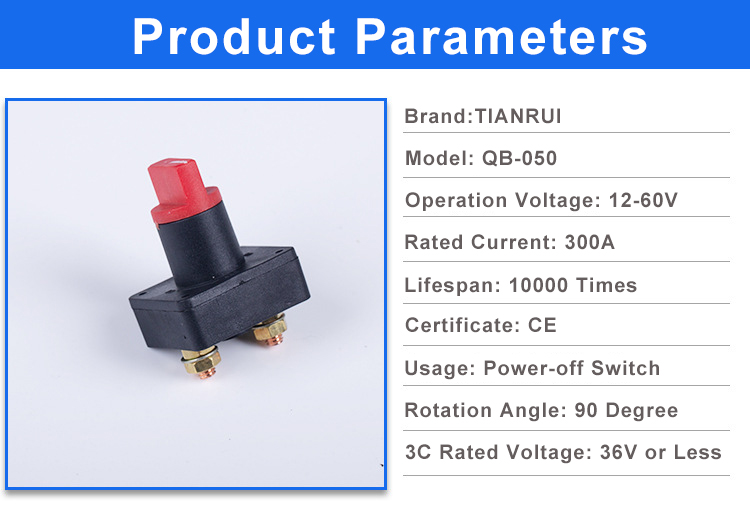

Specification of 300A 60VDC Mini Universal Motorcycle Car Auto Battery Disconnect Cut Off Kill Switch
* Material:Plastic
* Color:Red and Black
* Size:43 x 37 x 64mm/1.69 x 1.46 x 2.52"(L x W x H)
* Screw diameter: 6mm
* Distance between two switch positions: 25mm
* Rated current: 100A (Max 300A)
* Running capacity 100A, Max capacity 300A
* Voltage: 60V DC
* Contact resistance: 50M
* Insulation resistance: 100M
* Dielectric strength: 1500VAC / 1min
* Electrical life: 10000
* Weight:50g
| Switch Type | Battery Switch |
| Continuous Rating | 300Amps DC |
| Intermittent Rating | 600Amps DC |
| Cranking Rating | 1200Amps DC |
| Voltage Rating | 12V-48V DC |

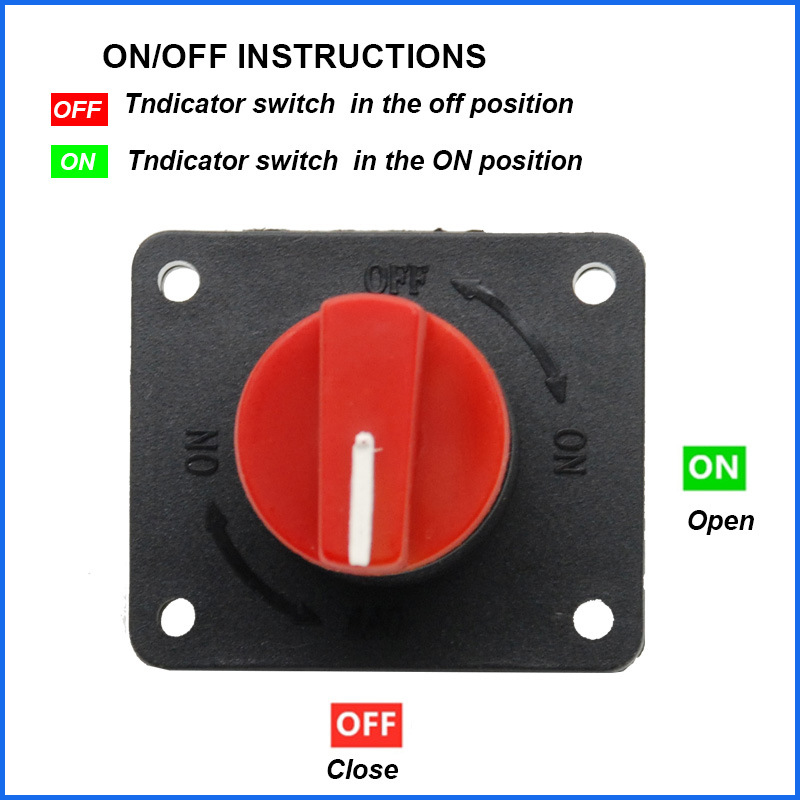

| Operation Type | On-Off |
| Electrical Life | 10000 Times |
| Stud | 3/8''-16 |
| Contact Resistance | 50m ohm Max |
| Insulation Resistance | DC 1500V 100M ohm Min |
| Dielectric Strength | AC 1500V 1 minute |
| Operation Temperature | -30°C~+60*C |
Features of 300A 60VDC Mini Universal Motorcycle Car Auto Battery Disconnect Cut Off Kill Switch
1. Easy to install, the lower four-sided baffle of the switch can be removed and installed.
2. Seiko material silver plated copper screws.
3. Small size, the base is detachable and easy to install.
4. Can be used for RV car yachts.
Function of 300A 60VDC Mini Universal Motorcycle Car Auto Battery Disconnect Cut Off Kill Switch
Prevent leakage, protect the power supply, disconnect the battery safely.

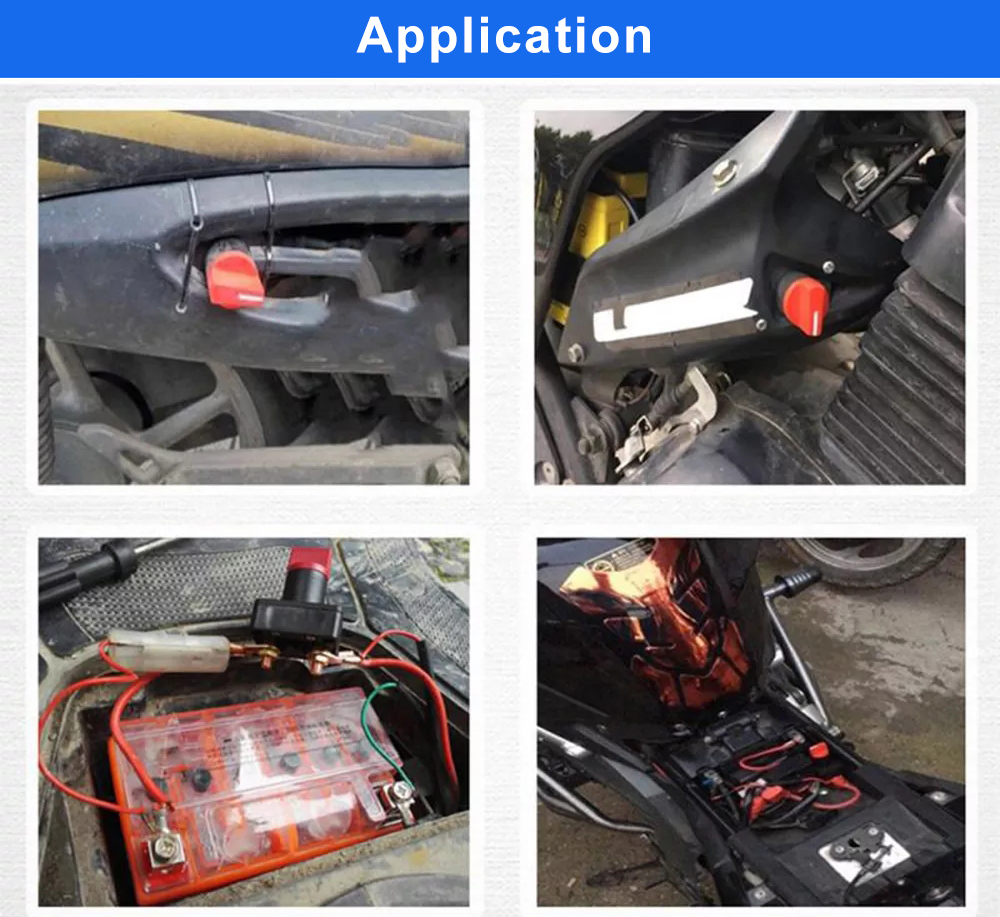

Application of 300A 60VDC Mini Universal Motorcycle Car Auto Battery Disconnect Cut Off Kill Switch
Designed for bilge pump applied in RV, boat, yacht etc.
Can be used as interior and exterior of the increase in all kinds of electrical devices on / off key (eg: Strobe, chassis lights,
fog lights).
